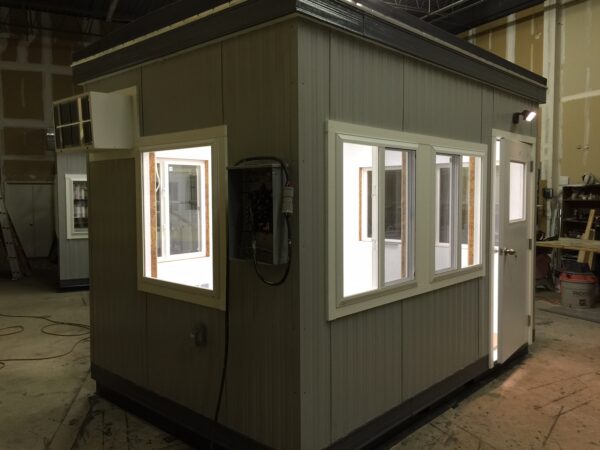

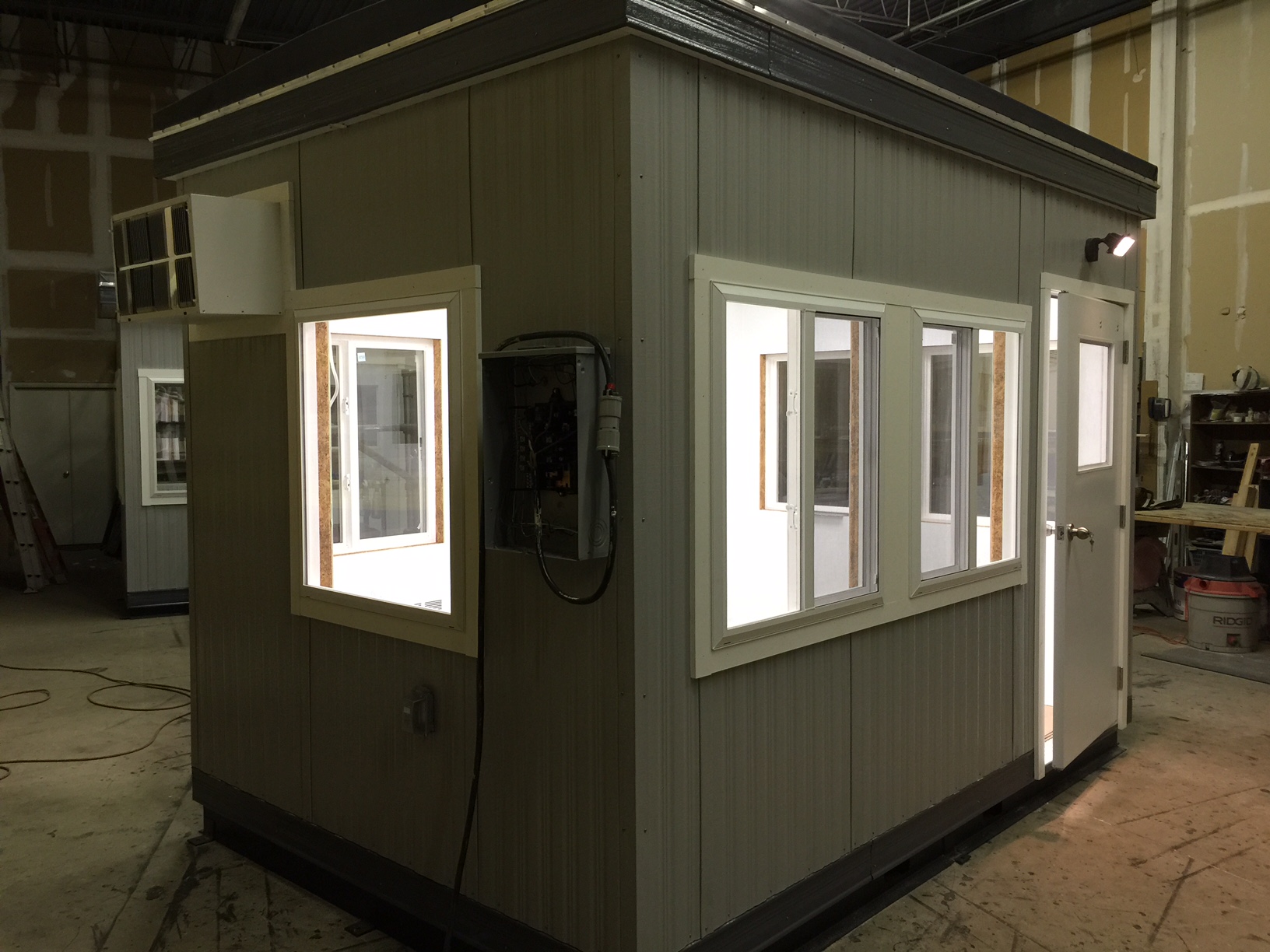

8 x 12 Guard House-PlanB

$22,275.00

8×12 Guard House-PlanB-Product#: 812GHB
Included Features: 8×12 Guard House-PlanB

  • Out swing door is positioned on the 12′ wall
  • 3000 watt wall heater with fan
  • 12,000 BTU through wall air conditioner with remote
  • Exterior security light-LED
  • Heavy duty steel base frame with built in fork pockets
  • Fully insulated-walls (R-13), roof (R-30), floor (R-12, Rigid)
  • Aluminum tread plate floor (over 3/4″ plywood sub floor)
  • Aluminum exterior-standard colors-lite gray with dark gray-top/bottom trim
  • Out swing steel door-aluminum jamb, 1/2 glass-tempered, stainless hinges, lockset, heavy duty door closer
  • Tempered insulated windows (sliding & fixed), double locking, insect screen

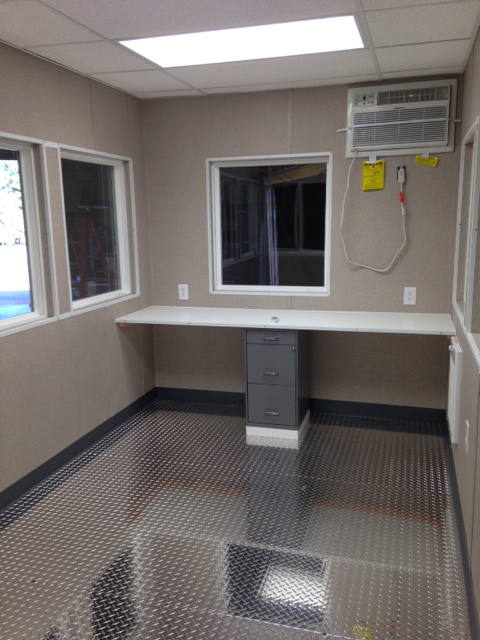

  • T-grid type ceiling with drop in LED light-wall switch
  • 100 amp Main panel with (4) duplex receptacles, dedicated circuit for heat and a/c
  • Counter/desktop, 24″ x 88″-laminated white
  • EPDM rubber roof with 3″/6″ overhang

Click to View Options and Accessories:
Options/Accessories

  • Engineered drawings with calculations
  • Foundation design/anchoring detail
  • Structural steel reinforced corners and top supports (required in wind & seismic zones)
  • Additional receptacles
  • Exterior GFCI receptacle
  • Sliding door
  • Window tinting
  • Custom colors
  • Stainless steel counter
  • Under counter storage draw
  • Data/communication boxes
  • FRP interior wall panels
    Click to View Drawings-8 x 12 Guard Booth-PlanB
    Drawings/Plans
    Shipping/Freight: Please call (856)227-0057 or email (info@guardboothonline.com) prior to your purchase for shipping rates to your specific location.
    Tax: New Jersey sales tax will apply for all pickups; For shipments to NJ. and PA applicable sales tax will apply.
    All other states-tax will be the responsibility of buyer.

8 x 12 Guard House-PlanB-Product#: 812GHB
Included Features: 8 x 12 Guard House-PlanB

  • Out swing door is positioned on the 12′ wall
  • 3000 watt wall heater with fan
  • 12,000 BTU through wall air conditioner with remote
  • Exterior security light-LED
  • Heavy duty steel base frame with built in fork pockets
  • Fully insulated-walls (R-13), roof (R-30), floor (R-12, Rigid)
  • Aluminum tread plate floor (over 3/4″ plywood sub floor)
  • Aluminum exterior-standard colors-lite gray with dark gray-top/bottom trim
  • Out swing steel door-aluminum jamb, 1/2 glass-tempered, stainless hinges, lockset, heavy duty door closer
  • Tempered insulated windows (sliding & fixed), double locking, insect screen
  • T-grid type ceiling with drop in LED light-wall switch
  • 100 amp Main panel with (4) duplex receptacles, dedicated circuit for heat and a/c
  • Counter/desktop, 24″ x 88″-laminated white
  • EPDM rubber roof with 3″/6″ overhang

Click to View Options and Accessories:
Options/Accessories

  • Engineered drawings with calculations
  • Foundation design/anchoring detail
  • Structural steel reinforced corners and top supports (required in wind & seismic zones)
  • Additional receptacles
  • Exterior GFCI receptacle
  • Sliding door
  • Window tinting
  • Custom colors
  • Stainless steel counter
  • Under counter storage draw
  • Data/communication boxes
  • FRP interior wall panels
    Click to View Drawings-8 x 12 Guard Booth-PlanB
    Drawings/Plans
    Shipping/Freight: Please call (856)227-0057 or email (info@guardboothonline.com) prior to your purchase for shipping rates to your specific location.
    Tax: New Jersey sales tax will apply for all pickups; For shipments to NJ. and PA applicable sales tax will apply.
    All other states-tax will be the responsibility of buyer.
